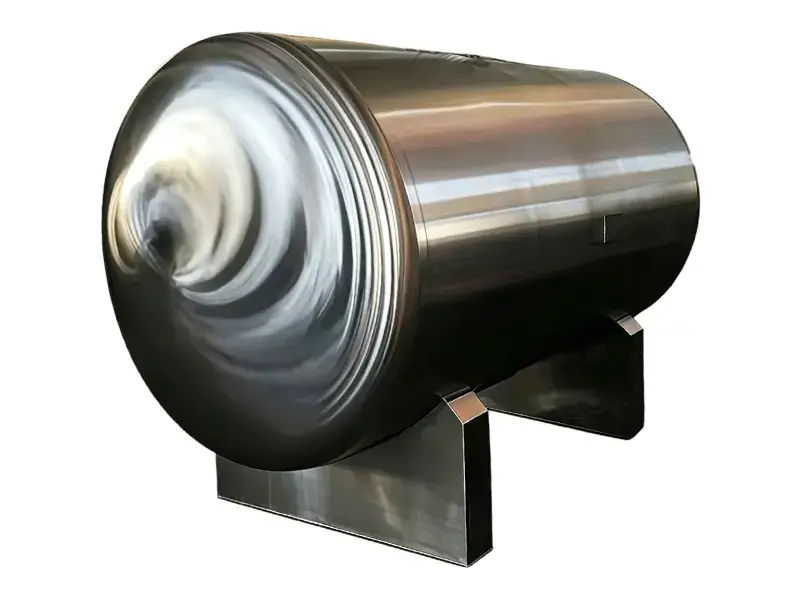

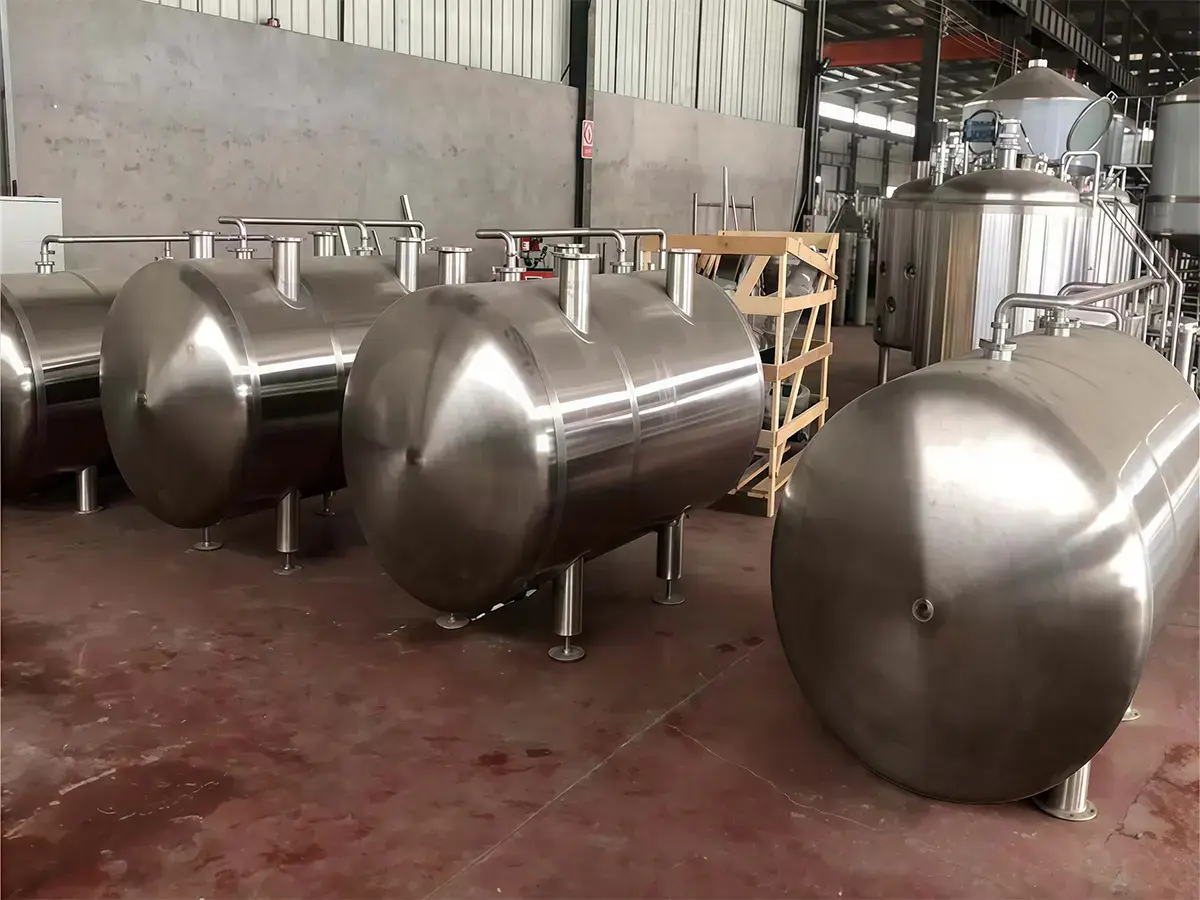

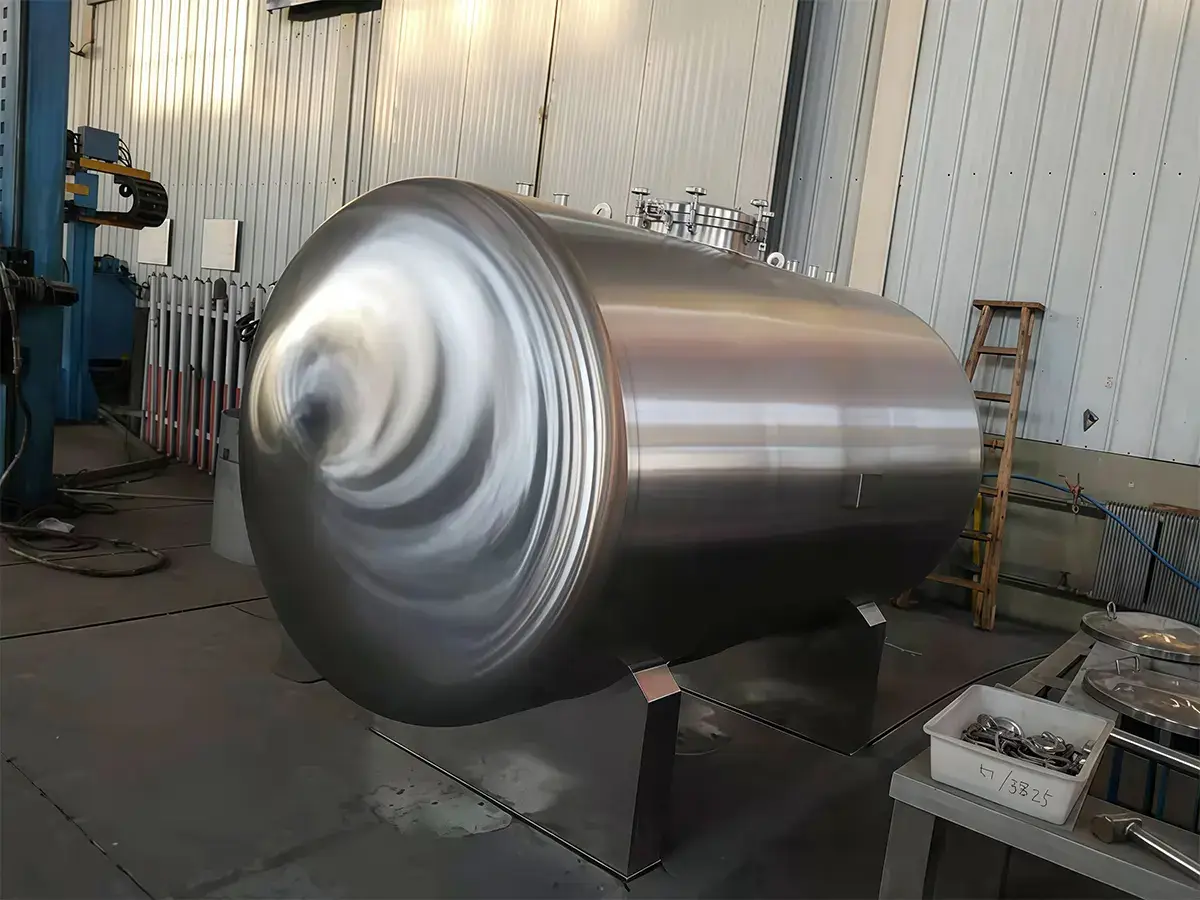

Horizontal WFI Storage Tank, SS316L/SS304

SS316L/SS304Horizontal WFI Storage Tank

Where plant layout requires a lower installation height or flexible equipment arrangement, the horizontal WFI storage tank provides a hygienic solution for Water for Injection storage and circulation. With heating, heat preservation, sanitary instrumentation, and SS316L or SS304 construction, the tank helps maintain stable WFI storage conditions while supporting easier monitoring, cleaning, and operation.

Request a Quote

The interlayer helical coil can be heated by steam or cooled by cold water, giving manufacturers better control over storage temperature. Its Ra0.4 mirror-polished inner surface, spray ball, vent filter, zero-dead-angle tank-bottom diaphragm valve, and automatic temperature control help reduce hygiene risks and support reliable integration into pharmaceutical clean utility systems.

Features

Manufactured according to national GMP certification requirements for purified water and distilled water storage.
Horizontal structure supports flexible installation where plant height or layout space is limited.
Automatic control supports process requirements such as 80°C storage, 65°C small-loop circulation, and large-loop circulation.
Available in single-layer or double-layer structures to match different storage, heating, and insulation needs.
Inner tank polishing accuracy reaches Ra0.4, helping improve cleanability and reduce residue buildup.
Outer tank polishing accuracy reaches Ra0.8, providing a clean and professional external finish.
The inner tank can be made of SS316L or SS304 to match different project requirements.
The inner cylinder is heated by a helical coil and insulated with glass fiber needle felt to support heat preservation.
Mirror or matte external panels can be used for the insulation layer, helping maintain a consistent tank appearance.
All liquid-contact parts are made of SS316L, while non-contact parts are made of SS304, supporting hygienic WFI storage conditions.
The top of the tank includes water inlet, return port, disinfection port, cleaning port, manhole, and 0.22 μm electrically heated vent filter for sanitary operation and maintenance.
The bottom is equipped with a zero-dead-angle tank-bottom diaphragm valve, condensate outlet, WFI outlet, drain outlet, liquid level measurement port, and temperature measurement port.
The jacket and cylinder are equipped with safety valves and pressure gauges for real-time monitoring and safer operation.
The control cabinet supports operation control, while instruments display WFI temperature and liquid level.
Automatic temperature control with upper and lower limit alarms helps maintain stable storage conditions.
Temperature sensor, sanitary level sensor, spray ball, and air breather support easier monitoring, cleaning, and hygienic ventilation.
The horizontal WFI storage tank can be individually designed and manufactured according to your WFI capacity, temperature control requirements, circulation design, and clean utility layout. Contact our team to discuss the right horizontal WFI storage configuration for your system.

Technical Parameters

Model	Specification	Reference size(mm)
Model	Specification	D	L	L1	L2	B
Cd1000	1000	1000	1606	730	1050	150
Cd2000	2000	1200	2156	1050	1500	150
Cd3000	3000	1300	2656	1300	1950	150
Cd4000	4000	1500	2708	1300	1900	200
Cd5000	5000	1600	2908	1400	2050	200
Cd6000	6000	1700	3108	1450	2200	200
Cd8000	8000	1900	3358	1650	2350	250
Cd10000	10000	1900	4058	2050	3000	250
Cd15000	15000	2100	4912	2500	3800	300
Cd20000	20000	2300	5472	2800	4200	300
