Single Wall Stainless Steel Tank | Pharma Storage

Single Wall Stainless Steel Tank, SS316L/SS304

SS316L/SS304 Single Wall Stainless Steel Tank

Matching with sanitary level sensor, cleaner and vent filter.
Using SS316L& SS304, the mirror polishing of the interior surface is Ra0.4. The exterior surface of the tank is used sub -optical polishing.
Connections adopt ISO2037 fast connections.
It can be customized according to the requirements of customers.

The single-wall stainless steel storage tank provides a hygienic and practical storage solution for pharmaceutical water and liquid preparation systems. Built with SS316L and SS304 stainless steel, the tank supports clean storage conditions, easy monitoring, and convenient connection to sanitary process pipelines.

Its Ra0.4 mirror-polished interior surface helps improve cleanability, while the satin-polished exterior provides a professional and durable finish for clean utility environments. With sanitary level sensing, a cleaning device, a vent filter, and ISO 2037 sanitary quick connections, the single-wall stainless steel storage tank is designed to support easier operation, maintenance, and system integration.

Features

Sanitary level sensor supports easier liquid level monitoring during storage.
Cleaning device helps make internal tank cleaning more convenient.
Vent filter supports hygienic tank ventilation and helps protect stored liquid quality.
SS316L and SS304 stainless steel construction provides a durable solution for pharmaceutical water and process liquid storage.
Ra0.4 mirror-polished interior surface helps improve cleanability and reduce residue buildup.
Satin-polished exterior surface gives the tank a clean and professional finish.
ISO 2037 sanitary quick connections support easier installation, disassembly, and pipeline integration.
The single-wall stainless steel storage tank can be customized according to your storage capacity, layout, and process requirements. Contact our team to discuss the right tank configuration for your system.

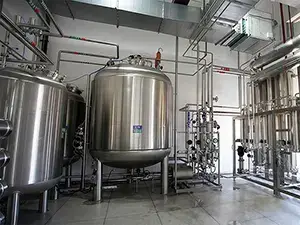

Vertical Single-Wall Stainless Steel Storage Tank

Model	Specification	Reference Size(mm)
Model	Specification	D	H	H1	H2	H3
CG1500	500	900	1710	650	1054	300
CG11000	1000	1100	1950	780	1256	400
CG12000	2000	1300	2320	1220	1774	400
CG13000	3000	1500	2600	1500	2132	400
CG14000	4000	1800	2470	1220	1968	400
CG15000	5000	1800	2750	1500	2248	400
CG16000	6000	1800	3250	2000	2748	400
CG18000	8000	2000	3615	2200	2956	400
CG110000	10000	2300	3520	2000	2972	400
CG112000	12000	2400	3840	2200	3220	400
CG115000	15000	2500	4400	2720	3672	400
CG120000	20000	2500	4970	3480	4500	400

Horizontal Single-Wall Stainless Steel Storage Tank

Model	Specification	Reference Size(mm)
Model	Specification	D	L	L1	L2	B
CD1000	1000	1000	1606	730	1050	150
CD2000	2000	1200	2156	1050	1500	150
CD3000	3000	1300	2656	1300	1950	150
CD4000	4000	1500	2708	1300	1900	200
CD5000	5000	1600	2908	1400	2050	200
CD6000	6000	1700	3108	1450	2200	200
CD8000	8000	1900	3358	1650	2350	250
CD10000	10000	1900	4058	2050	3000	250
CD15000	15000	2100	4912	2500	3800	300
CD20000	20000	2300	5472	2800	4200	300
