Horizontal Purified Water Tank, SS316L/SS304

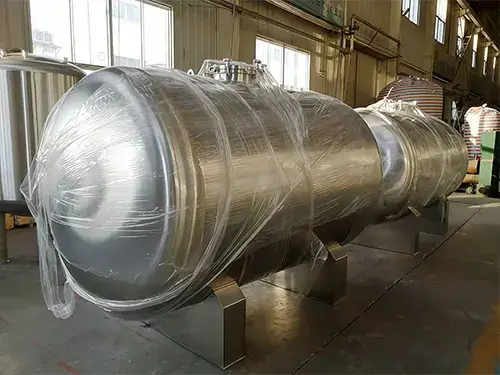

SS316L/SS304 Horizontal Purified Water Tank

For projects where layout flexibility and stable purified water storage are both important, the horizontal purified water storage tank provides a hygienic stainless steel solution for purified water and distilled water systems. Made with SS316L or SS304, the tank features a Ra0.4 mirror-polished inner surface, sanitary fittings, spray ball cleaning, and vent filtration to support clean storage and easier maintenance.

Request a Quote

The horizontal design is suitable for facilities that need a lower installation height or a layout that fits specific plant space conditions. With automatic temperature control, safety monitoring, sanitary ports, and customizable construction, the horizontal purified water storage tank helps manufacturers maintain stable storage conditions while making daily operation and system integration more convenient.

Features
  • Manufactured according to national GMP certification requirements for purified water and distilled water storage.
  • Horizontal tank structure supports flexible installation in facilities with height or layout limitations.
  • Available in single-layer or double-layer structures to match different process, storage, and insulation needs.
  • Inner tank polishing accuracy reaches Ra0.4, helping improve cleanability and reduce residue buildup.
  • Outer tank polishing accuracy reaches Ra0.8, giving the tank a clean and professional external finish.
  • The inner tank can be made of SS316L or SS304 to match different project and water quality requirements.
  • The inner cylinder can be heated with a helical coil and insulated with glass fiber needle felt, supporting heat preservation when required.
  • Mirror or matte external panels can be used for the insulation layer, helping maintain a consistent tank appearance.
  • All liquid-contact parts are made of SS316L, while non-contact parts are made of SS304, supporting hygienic storage conditions.
  • The top of the tank includes water inlet, return port, disinfection port, cleaning port, manhole, and 0.22 μm electrically heated vent filter for sanitary operation and maintenance.
  • The bottom is equipped with a zero-dead-angle tank-bottom diaphragm valve, condensate outlet, distilled water outlet, drain outlet, liquid level measurement port, and temperature measurement port.
  • The jacket and cylinder are equipped with safety valves and pressure gauges for real-time monitoring and safer operation.
  • The control cabinet supports operation control, while instruments display distilled water temperature and liquid level.
  • Automatic temperature control with upper and lower limit alarms helps maintain stable storage conditions.
  • Temperature sensor, sanitary level sensor, cleaning device, and air breather support easier monitoring, cleaning, and hygienic ventilation.
  • The horizontal purified water storage tank can be individually designed and manufactured according to your capacity, layout, temperature control, and clean utility requirements. Contact our team to discuss the right storage configuration for your purified water system.
Technical Parameters
Model Specification Reference size(mm)
D L L1 L2 B
Cd1000 1000 1000 1606 730 1050 150
Cd2000 2000 1200 2156 1050 1500 150
Cd3000 3000 1300 2656 1300 1950 150
Cd4000 4000 1500 2708 1300 1900 200
Cd5000 5000 1600 2908 1400 2050 200
Cd6000 6000 1700 3108 1450 2200 200
Cd8000 8000 1900 3358 1650 2350 250
Cd10000 10000 1900 4058 2050 3000 250
Cd15000 15000 2100 4912 2500 3800 300
Cd20000 20000 2300 5472 2800 4200 300
