Water for Injection Storage Tank (WFI Tank)
Medical Water Production Equipment
WFI Storage Tank
Water for Injection Storage Tank (WFI Tank)
    • Water for Injection Storage Tank (WFI Tank)
    • Water for Injection Storage Tank (WFI Tank)
    • Water for Injection Storage Tank (WFI Tank)
    • Water for Injection Storage Tank (WFI Tank)
    • Water for Injection Storage Tank (WFI Tank)

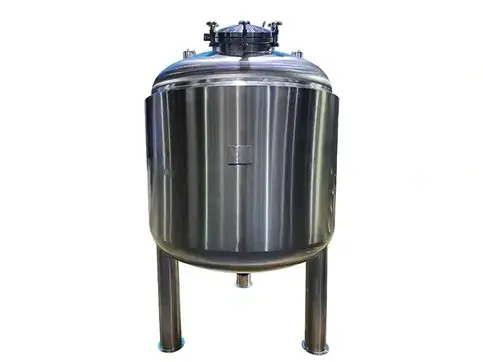

Water for Injection Storage Tank (WFI Tank)

Stainless steel pharmaceutical storage tanks for storing sterile water for injection

Stainless steel WFI tanks are a proven solution for storing ultra-pure sterile water for injection in pharmaceutical manufacturing. Our WFI storage tanks are available in vertical and horizontal configurations, with options for single-layer or double-layer construction. Designed with heating and insulation capabilities, these pharmaceutical storage tanks feature a spiral jacket in the intermediate layer for steam heating or chilled water cooling. The insulation layer is made of high-quality glass fiber felt for superior thermal performance.

We offer customized design and manufacturing of WFI storage tanks to meet the specific requirements of pharmaceutical production.

Request a Quote

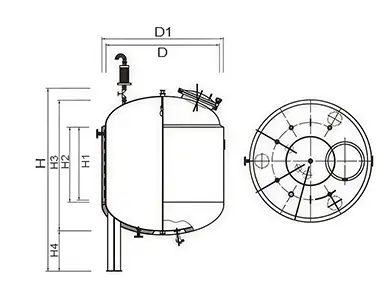

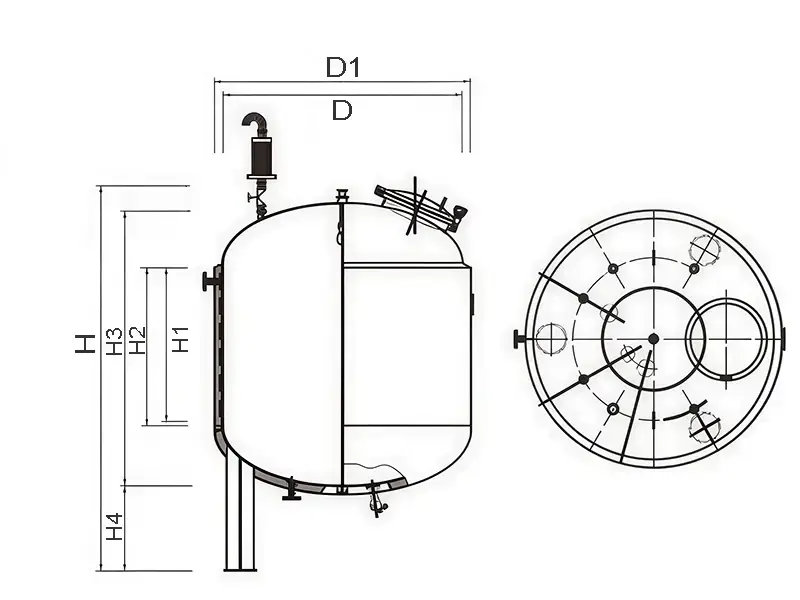

Specifications of Vertical WFI Storage Tank
Model Volume (L) Dimensions (mm)
D D1 H H1 H2 H3 H4
CHL300 300 800 900 1484 460 461 820 400
CHL500 500 900 1000 1587 530 530 928 400
CHL1000 1000 1100 1200 1878 750 750 1356 400
CHL2000 2000 1300 1400 2463 1220 1220 1926 400
CHL3000 3000 1600 1700 2395 1220 1100 2070 400
CHL4000 4000 1800 1900 2557 1220 1220 2220 400
CHL5000 5000 1900 2000 2637 1220 1220 2220 400
CHL6000 6000 2000 2100 2806 1380 1380 2206 400
CHL8000 8000 2200 2300 3226 1500 1500 2680 400
CHL10000 10000 2400 2500 3450 1580 1780 2780 400

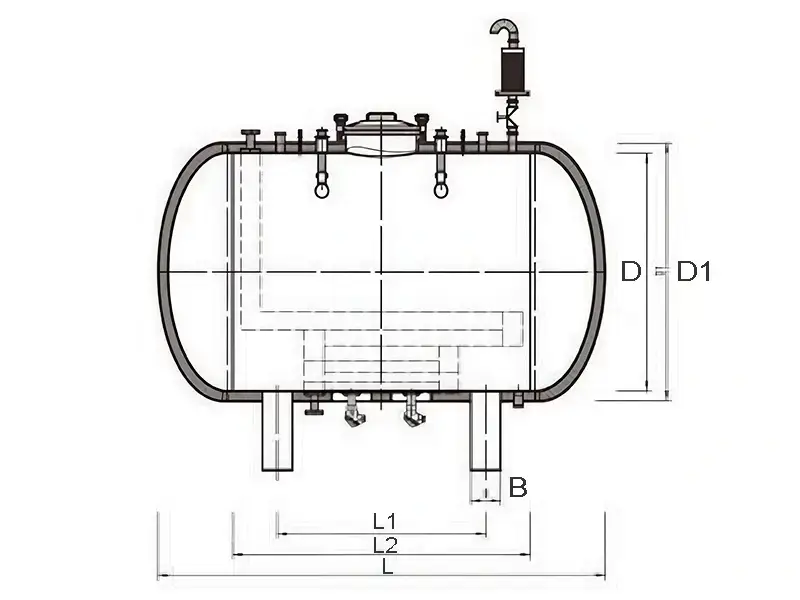

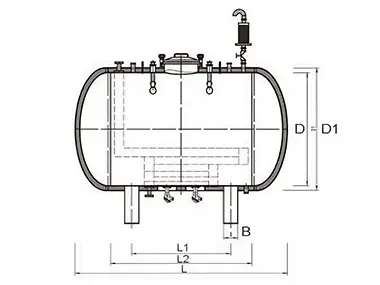

Specifications of Horizontal WFI Storage Tank
Specifications of Horizontal WFI Storage Tank
Model Volume (L) Dimensions (mm)
D D1 L L1 L2 B
CHW1000 1000 1000 1100 1696 730 1050 150
CHW2000 2000 1200 1300 2267 1050 1500 150
CHW3000 3000 1300 1400 2746 1300 1950 150
CHW4000 4000 1500 1600 2796 1300 1900 200
CHW5000 5000 1600 1700 3002 1400 2050 200
CHW6000 6000 1700 1800 3202 1450 2200 200
CHW8000 8000 1900 2000 3444 1650 2350 250
CHW10000 10000 1900 2000 4144 2050 3000 250
CHW15000 15000 2100 2200 4910 2500 3800 300
CHW20000 20000 2300 2400 5492 2800 4200 300
Specifications of Vertical WFI Storage Tank
FAQs

Yes, we can design and manufacture customized WFI storage tanks according to your requirements. The tanks feature a sanitary, pharmaceutical-grade design and can be equipped with Clean-in-Place (CIP) and Steam-in-Place (SIP) capabilities. They fully comply with GMP standards and are suitable for medical industry applications.

Absolutely. Our WFI tanks can be customized to meet unique material and insulation specifications. The tanks use a sanitary, pharmaceutical-grade design and can be equipped with insulation made from non-asbestos and chlorine-free materials. The outer insulation layer is clad with SS304 stainless steel, making it suitable for food industry applications.

Yes. We can custom-build storage tanks with coil jackets, half-pipe jackets, or full jackets to enable effective temperature exchange inside the vessel. The tanks can also be insulated and designed with CIP and SIP functionality. With a sanitary, pharmaceutical-grade design, these tanks meet GMP requirements for pharmaceutical production environments.

We design customized purified water storage tanks with CIP and SIP functionality that comply with GMP standards. The tanks can include various instrument fittings such as spray balls, diaphragm pressure gauges (pressure sensors), temperature sensors, and level sensors, ensuring compatibility with electronic manufacturing requirements.
