SS316L Compounding Tank | Formulation Tank

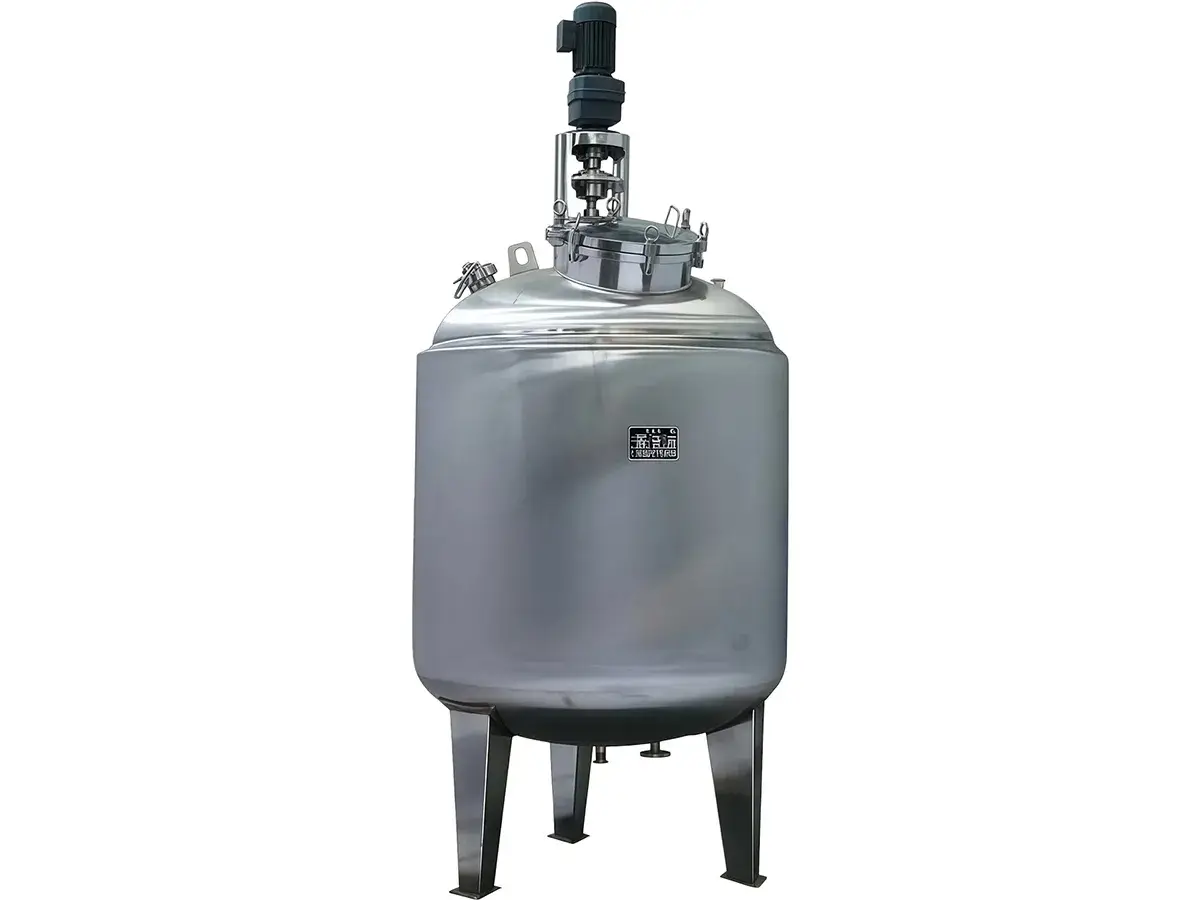

SS316L Compounding Tank / Formulation Tank

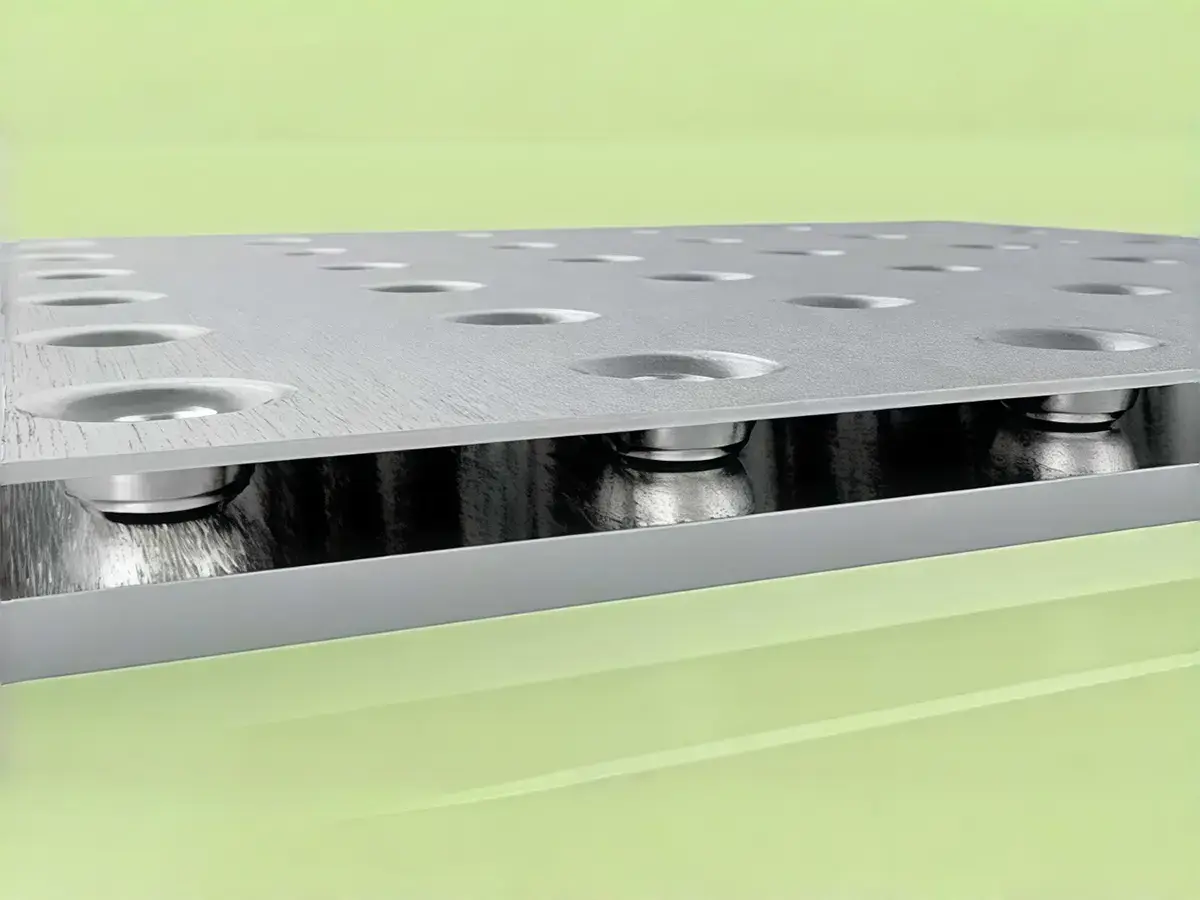

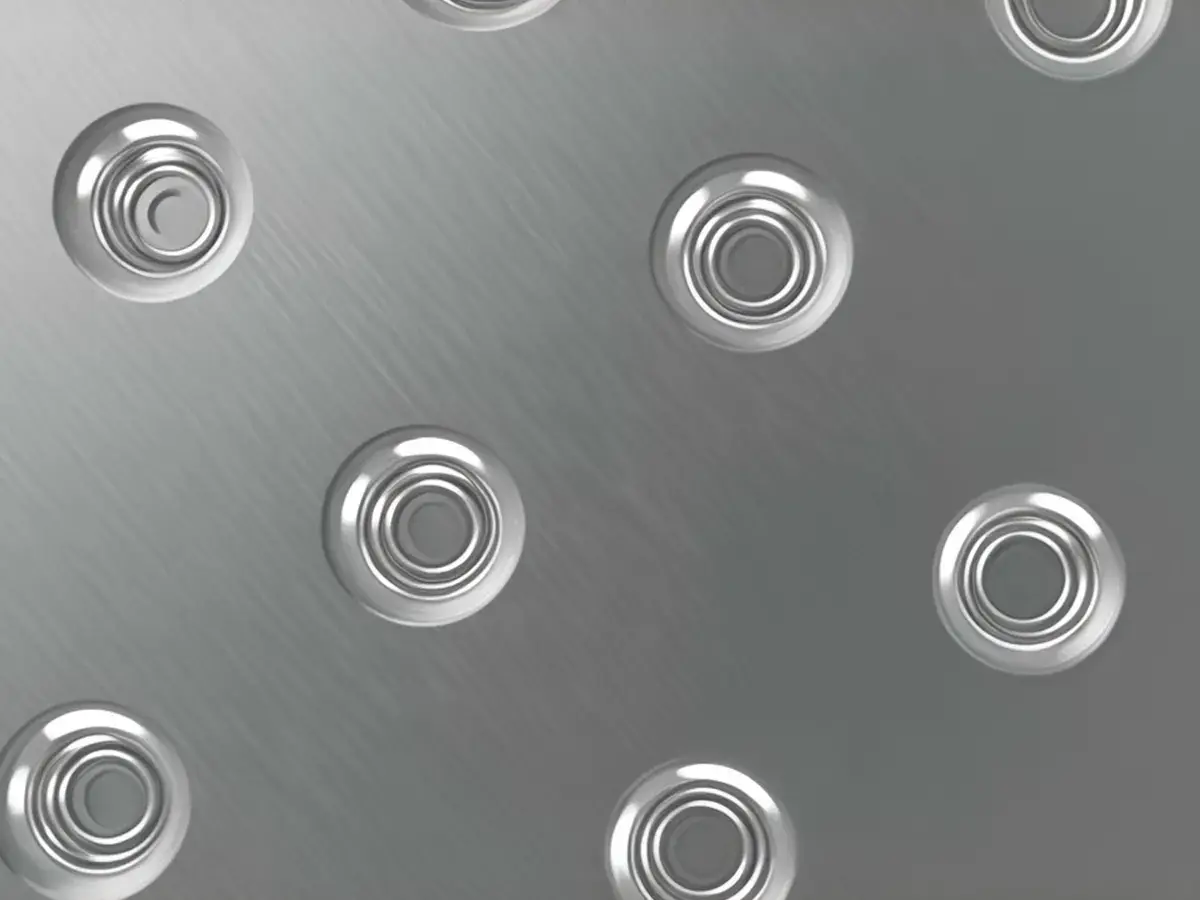

The SS316L compounding tank is designed to support reliable preparation of concentrated and diluted solutions in pharmaceutical liquid processing. Its dimple jacket improves heat transfer by changing the flow direction and velocity of the heating or cooling medium, helping you achieve faster temperature control, better energy use, and more stable solution preparation.

Built with SS316L contact parts, sanitary connections, and a double-layer structure, the SS316L Compounding Tank helps maintain hygienic processing conditions while supporting efficient heating, cooling, and insulation. It is a practical solution for pharmaceutical manufacturers that need clean, stable, and customizable liquid preparation equipment.

Request a Quote

Technical Parameters

The body of the tank adopts the double layers structure.
It has the functions of the heating and heat preservation. The interlayer twined helical band is heated by steam or cooled by cooling water. The material of the heat preservation is composite siliate thread felt.
SS316L are used in all the components touching the liquid, SS304 with rest parts.
It is equipped with telescopiform temperature tansmitter, sanitary level transmitter, cleaner and vent filter.
We can choose famous Germany brands ete. For electrical reducer. We can also add. transducer to realize the steeples speed regulation.
The sealing of the mixer shaft is realized by sanitary double channel mechanical sealing,
Connections adopts ISO2037 clamp fast connections.
It can be customized according to the requirements of customers.

Technical Parameters

Model	Specification	Reference Size (mm)
Model	Specification	D	D1	n-φ3	H	H1	H2	H3	H4	Power (kw)
PG100	100	600	700	Φ200	1898	380	300	665	442	0.37
PG200	200	800	900	Φ250	1939	350	374	710	445	0.37
PG300	300	800	900	Φ250	2039	450	474	812	445	0.55
PG500	500	900	1000	Φ300	2270	640	664	1038	445	0.55
PG600	600	900	1000	Φ300	2419	830	853	1228	404	0.55
PG800	800	1000	1100	Φ350	2659	890	913	1326	403	0.75
PG1000	1000	1100	1200	Φ350	2710	900	920	1316	403	0.75
PG1500	1500	1300	1400	Φ400	2848	960	984	1514	403	0.75
PG2000	2000	1400	1500	2-Φ400	3027	1100	1120	1692	403	1.5
PG2500	2500	1500	1600	2-Φ450	3169	1200	1220	1832	404	1.5
PG3000	3000	1600	1700	2-Φ500	3308	1300	1325	1970	404	1.5
PG4000	4000	1900	2000	2-Φ500	3273	1150	1174	1936	404	1.5
PG5000	5000	1900	2000	2-Φ600	3623	1500	1524	2286	404	2.2
PG6000	6000	2100	2200	2-Φ600	3657	1430	1456	2324	405	2.2
PG8000	8000	2300	2400	2-Φ700	3808	1500	1527	2472	406	3
PG10000	10000	2500	2600	2-Φ750	4085	1700	1716	2748	406	3
