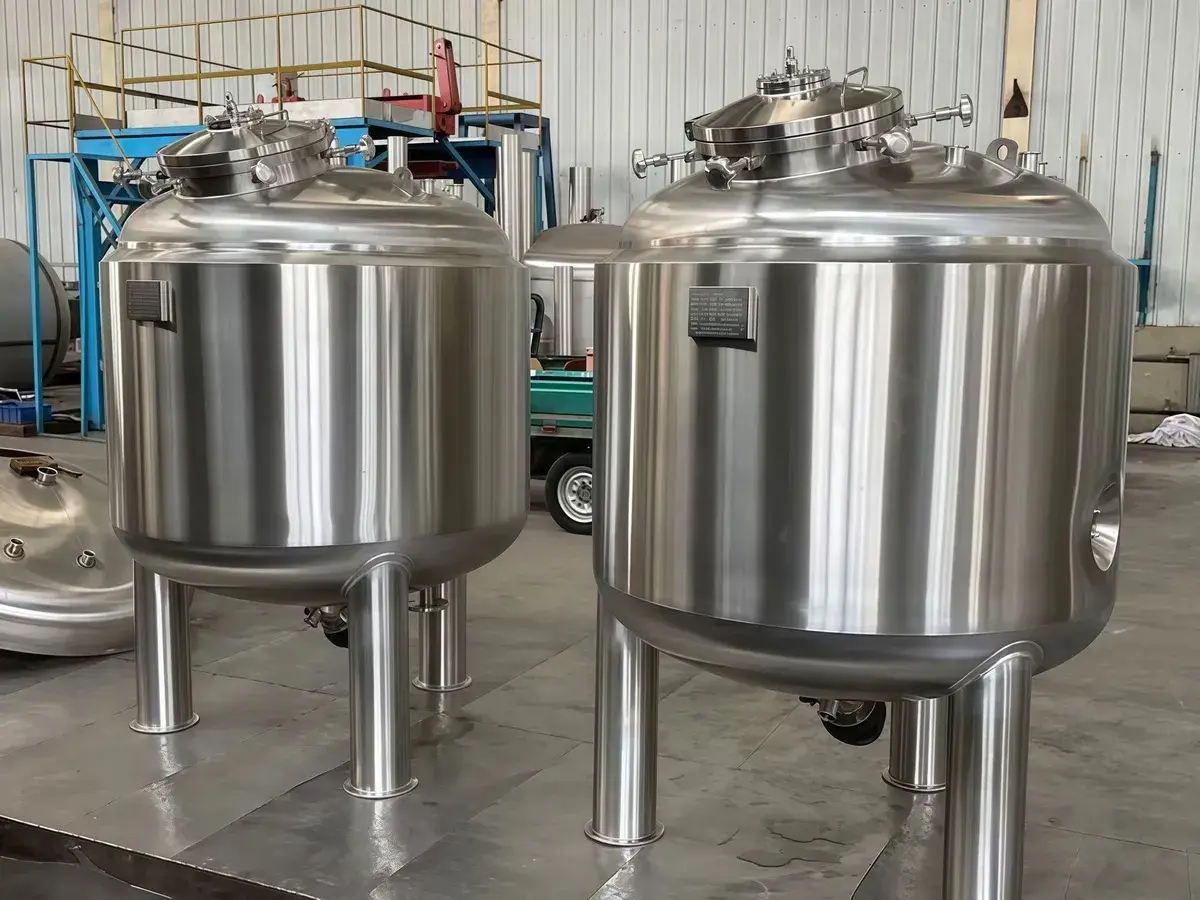

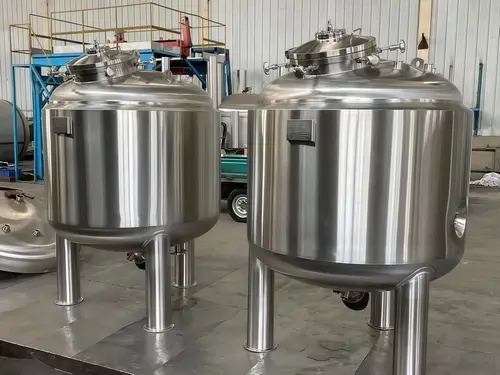

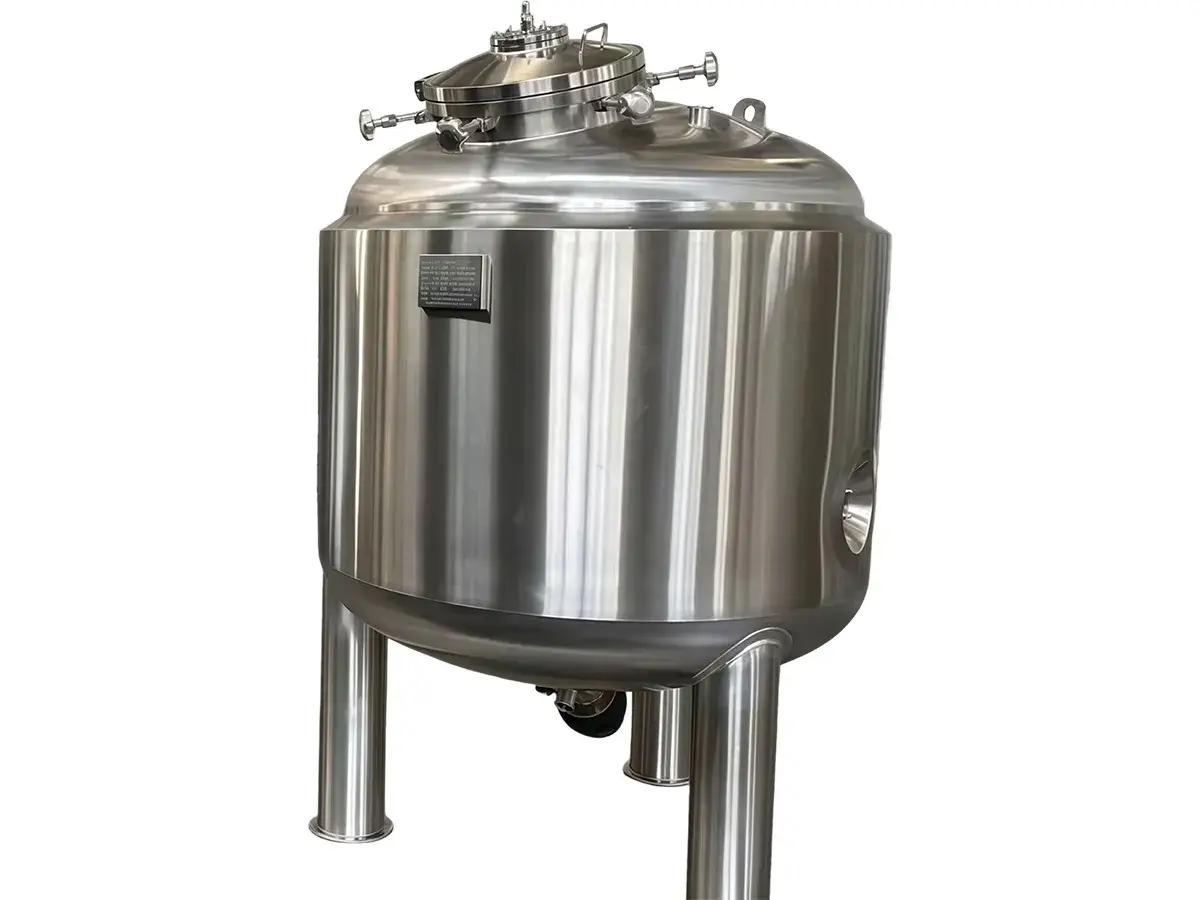

SS316L Magnetic Mixer Tank (Magnetic Stirring Tank)

For pharmaceutical manufacturers handling liquid preparation, the bottom-mounted SS316L magnetic mixer tank offers a hygienic mixing solution that saves space and supports stable process control. Built around GMP, ISPE engineering guidelines, and FDA-oriented design principles, the tank supports clean installation, practical operation, and reduced contamination risks in liquid preparation and WFI-related process systems.

Request a Quote

Its bottom-mounted magnetic mixing design helps make better use of the production area while supporting efficient liquid movement inside the tank. Combined with SS316L liquid-contact parts, sanitary fittings, heating and insulation functions, and optional weighing control, the bottom-mounted SS316L magnetic mixer tank gives pharmaceutical manufacturers a flexible solution for clean, stable, and process-ready liquid preparation.

Features

Compact installation and clean layout help save floor space and support better use of the production area.
Bottom-mounted magnetic mixing is suitable for liquid preparation systems where stable mixing and a sanitary tank design are required.
Double-layer tank structure supports heating, cooling, and heat preservation for better temperature control during preparation.
The helical coil in the jacket can be heated by steam or cooled by cooling water, helping maintain process stability across different production needs.
Composite silicate needle felt insulation helps reduce heat loss and supports more efficient energy use.
SS316L is used for all liquid-contact parts, while SS304 is used for non-contact parts, helping maintain hygienic processing conditions.
The tank is equipped with a telescopic temperature transmitter, sanitary level transmitter, cleaning device, and filter to support easier monitoring and maintenance.
Optional German-brand gear reducer and frequency inverter allow smooth, stepless speed regulation for different mixing requirements.
The mixer shaft sealing can be configured with a sanitary double mechanical seal where required by the design.
ISO 2037 sanitary clamp connections make installation, cleaning, and maintenance more convenient.
A weighing system can be installed in the batching tank to support more accurate material control during liquid preparation.
The Bottom-Mounted SS316L Magnetic Mixer Tank can be customized according to your process layout, hygiene requirements, and production capacity. Contact our team to discuss the right configuration for your liquid preparation system.

Technical Parameters

Model	Specification	Reference Size(mm)
Model	Specification	D	D1	n-φ3	H	H1	H2
PG100	100	600	700	Φ200	1898	380	300
PG200	200	800	900	Φ250	1939	350	374
PG300	300	800	900	Φ250	2039	450	474
PG500	500	900	1000	Φ300	2270	640	664
PG600	600	900	1000	Φ300	2419	830	853
PG800	800	1000	1100	Φ350	2659	890	913
PG1000	1000	1100	1200	Φ350	2710	900	920
PG1500	1500	1300	1400	Φ400	2848	960	984
PG2000	2000	1400	1500	2-Φ400	3027	1100	1120
PG2500	2500	1500	1600	2-Φ450	3169	1200	1220
PG3000	3000	1600	1700	2-Φ500	3308	1300	1325
PG4000	4000	1900	2000	2-Φ500	3273	1150	1174
PG5000	5000	1900	2000	2-Φ600	3623	1500	1524
PG6000	6000	2100	2200	2-Φ600	3657	1430	1456
