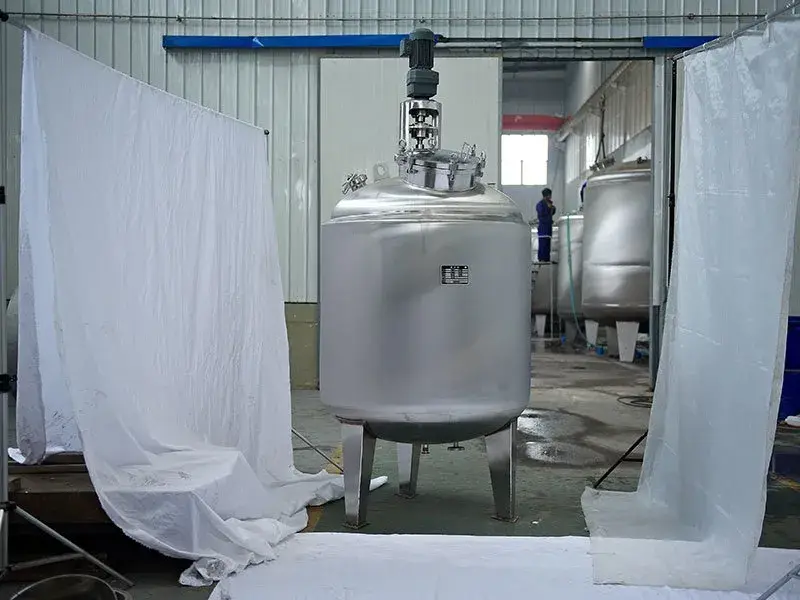

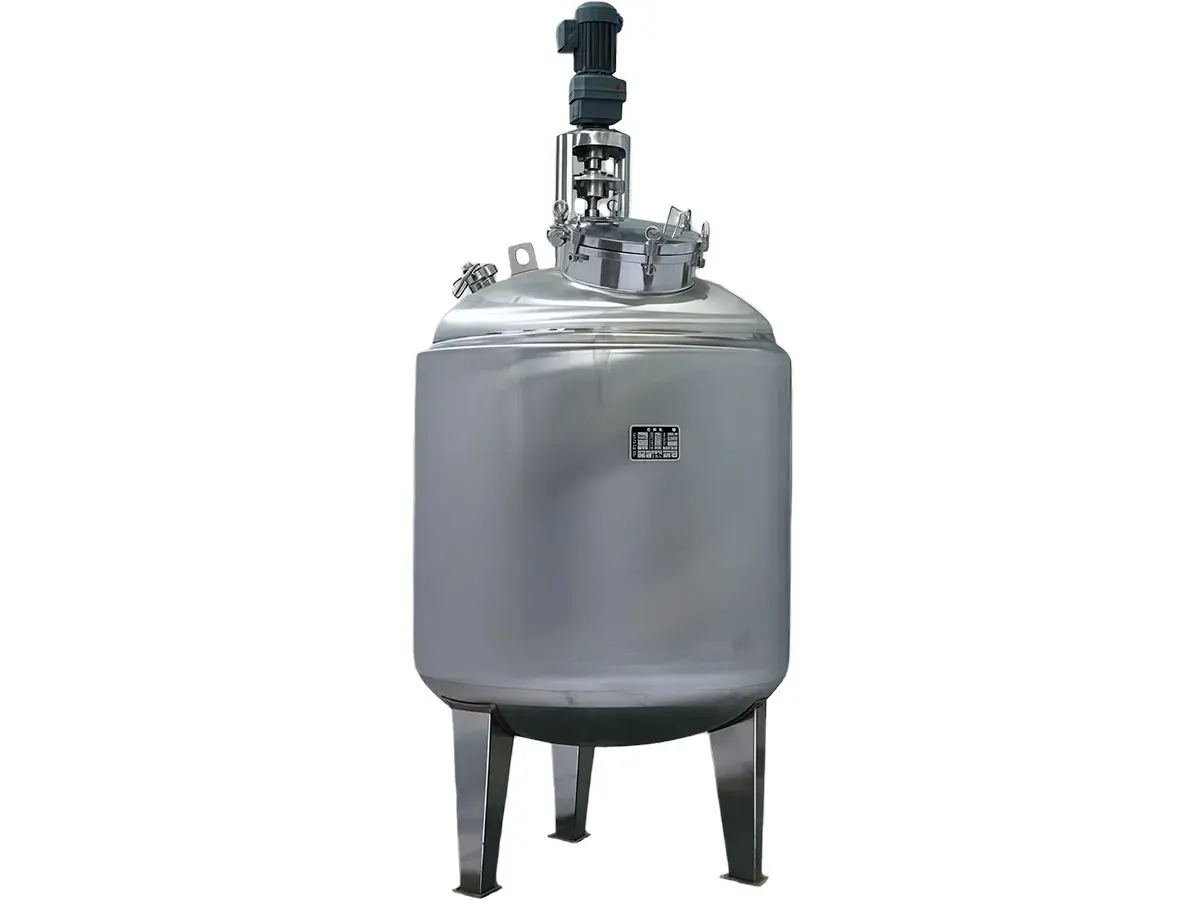

SS316L Mechanical agitation tanks (Mechanical Mixing Vessel)
  • SS316L Mechanical agitation tanks (Mechanical Mixing Vessel)
  • SS316L Mechanical agitation tanks (Mechanical Mixing Vessel)
  • SS316L Mechanical agitation tanks (Mechanical Mixing Vessel)

SS316L Mechanical agitation tanks (Mechanical Mixing Vessel)

Reliable mixing and hygienic construction are essential when preparing pharmaceutical liquids under controlled process conditions. The SS316L mechanical mixing vessel supports liquid preparation systems with stable mechanical agitation, clean piping connections, and a practical layout designed to meet GMP, ISPE engineering guidelines, and FDA-oriented requirements.

Request a Quote

The double-layer vessel structure supports heating, cooling, and heat preservation, helping manufacturers maintain better temperature control during preparation. With SS316L liquid-contact parts, sanitary instrumentation, optional speed regulation, and customizable configurations, the SS316L mechanical mixing vessel helps build a cleaner, more stable, and easier-to-manage liquid preparation process.

Features
  • Compact installation and a clean layout help save space and make the production area easier to organize.
  • Mechanical mixing supports stable agitation for pharmaceutical liquid preparation, compounding, and formulation processes.
  • The double-layer tank structure supports heating, cooling, and heat preservation for better process temperature control.
  • The helical coil in the jacket can be heated by steam or cooled by cooling water, helping the vessel adapt to different production requirements.
  • Composite silicate needle felt insulation helps reduce heat loss and supports more efficient energy use.
  • SS316L is used for all liquid-contact parts, while SS304 is used for non-contact parts, helping maintain hygienic processing conditions.
  • The vessel is equipped with a telescopic temperature transmitter, sanitary level transmitter, cleaning device, and filter to support easier monitoring, cleaning, and maintenance.
  • An optional German-brand gear reducer and frequency inverter can be added for smooth, stepless speed regulation.
  • The mixer shaft uses a sanitary double mechanical seal to help reduce contamination risks around the shaft area.
  • ISO 2037 sanitary clamp connections make installation, disassembly, cleaning, and maintenance more convenient.
  • A weighing system can be installed in the batching tank to support more accurate material control during liquid preparation.
  • The SS316L mechanical mixing vessel can be customized according to your process layout, hygiene requirements, and production capacity. Contact our team to discuss the right configuration for your liquid preparation system.
Technical Parameters
Model Specification Reference Size(mm)
D D1 n-φ3 H H1 H2 H3 H4
PG100 100 600 700 Φ200 1898 380 300 665 442
PG200 200 800 900 Φ250 1939 350 374 710 445
PG300 300 800 900 Φ250 2039 450 474 812 445
PG500 500 900 1000 Φ300 2270 640 664 1038 445
PG600 600 900 1000 Φ300 2419 830 853 1228 404
PG800 800 1000 1100 Φ350 2659 890 913 1326 403
PG1000 1000 1100 1200 Φ350 2710 900 920 1316 403
PG1500 1500 1300 1400 Φ400 2848 960 984 1514 403
PG2000 2000 1400 1500 2-Φ400 3027 1100 1120 1692 403
PG2500 2500 1500 1600 2-Φ450 3169 1200 1220 1832 404
PG3000 3000 1600 1700 2-Φ500 3308 1300 1325 1970 404
PG4000 4000 1900 2000 2-Φ500 3273 1150 1174 1936 404
PG5000 5000 1900 2000 2-Φ600 3623 1500 1524 2286 404
PG6000 6000 2100 2200 2-Φ600 3657 1430 1456 2324 405
