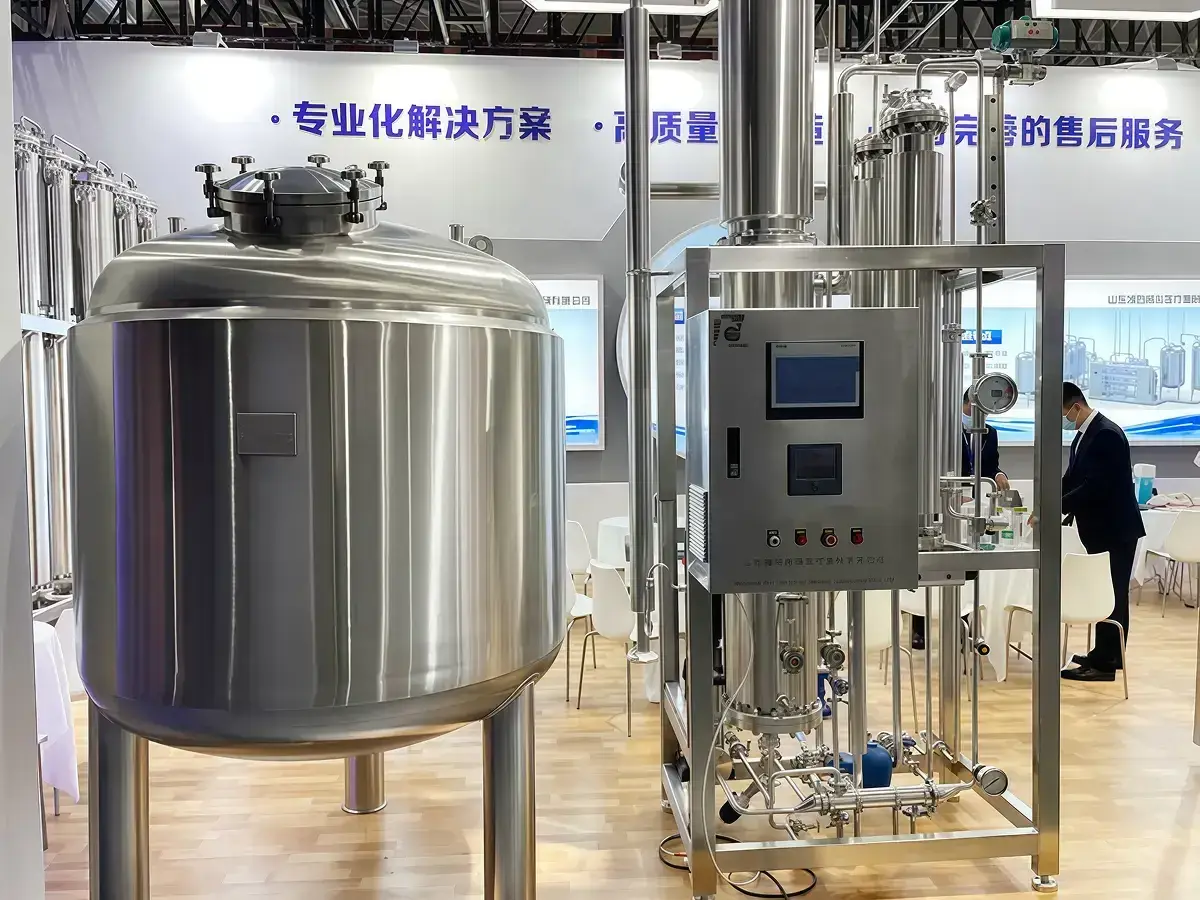

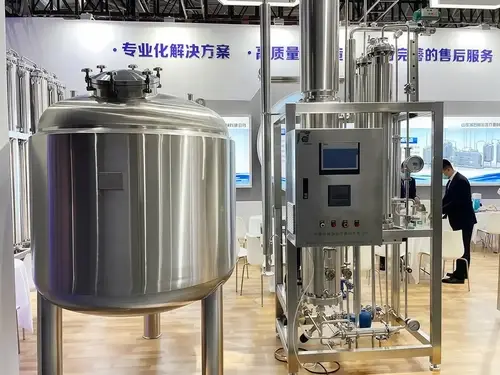

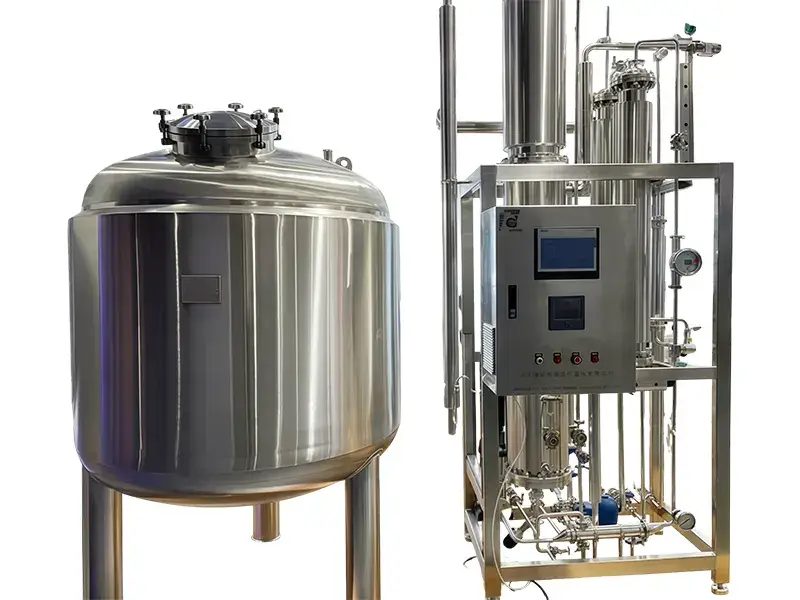

SS316L/SS304Vertical WFI Storage Tank

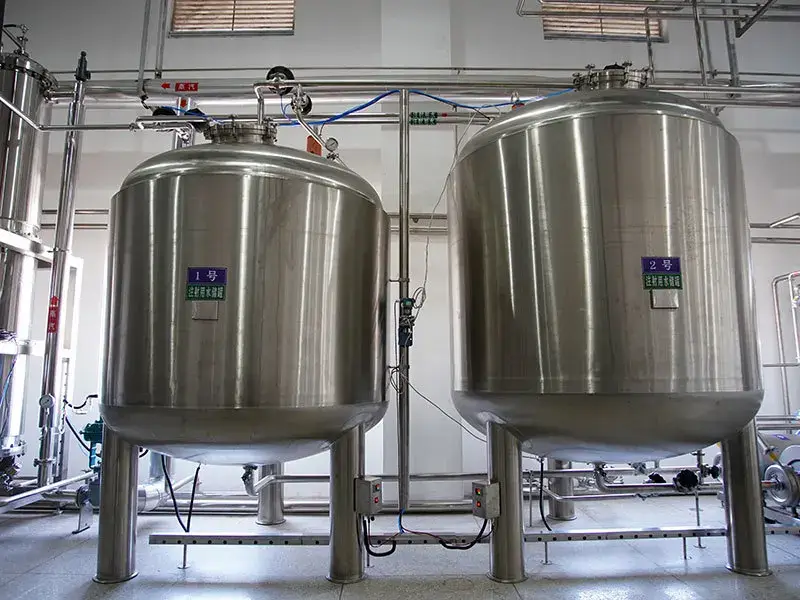

In WFI storage and circulation systems, temperature stability, hygienic construction, and reliable monitoring are essential for maintaining water quality. The vertical WFI storage tank is designed for pharmaceutical Water for Injection storage, with heating and heat preservation functions that support controlled hot storage and circulation requirements.

Request a Quote

The interlayer helical coil can be heated by steam or cooled by cold water, helping the tank maintain stable process conditions when WFI temperature control is required. With SS316L or SS304 construction, a Ra0.4 mirror-polished inner surface, sanitary level sensing, spray ball cleaning, vent filtration, and automatic control, the vertical WFI storage tank helps pharmaceutical manufacturers manage WFI storage more safely, cleanly, and efficiently.

Features
  • Manufactured according to national GMP certification requirements for purified water and distilled water storage.
  • Vertical structure helps save floor space and supports practical integration into WFI storage and distribution systems.
  • Automatic control supports process requirements such as 80°C storage, 65°C small-loop circulation, and large-loop circulation.
  • Available in single-layer or double-layer structures to match different storage, heating, and insulation needs.
  • Inner tank polishing accuracy reaches Ra0.4, helping improve cleanability and reduce residue buildup.
  • Outer tank polishing accuracy reaches Ra0.8, providing a clean and professional external finish.
  • The inner tank can be made of SS316L or SS304 to match different project requirements.
  • The inner cylinder is heated by a helical coil and insulated with glass fiber needle felt to support heat preservation.
  • Mirror or matte external panels can be used for the insulation layer, helping maintain a consistent tank appearance.
  • All liquid-contact parts are made of SS316L, while non-contact parts are made of SS304, supporting hygienic WFI storage conditions.
  • The top of the tank includes water inlet, return port, disinfection port, cleaning port, manhole, and 0.22 μm electrically heated vent filter for sanitary operation and maintenance.
  • The bottom is equipped with a zero-dead-angle tank-bottom diaphragm valve, condensate outlet, WFI outlet, drain outlet, liquid level measurement port, and temperature measurement port.
  • The jacket and cylinder are equipped with safety valves and pressure gauges for real-time monitoring and safer operation.
  • The control cabinet supports operation control, while instruments display WFI temperature and liquid level.
  • Automatic temperature control and upper/lower limit alarms help maintain stable storage conditions.
  • Temperature sensor, sanitary level sensor, spray ball, and air breather support easier monitoring, cleaning, and hygienic ventilation.
  • The Vertical WFI Storage Tank can be individually designed and manufactured according to your WFI capacity, temperature control requirements, circulation design, and clean utility layout. Contact our team to discuss the right vertical WFI storage configuration for your system.
Technical Parameters
Model Specification Reference Size(mm)
D D1 H H1 H2 H3 H4
CHL300 300 800 900 1484 460 461 820 400
CHL500 500 900 1000 1587 530 530 928 400
CHL1000 1000 1100 1200 1878 750 750 1356 400
CHL2000 2000 1300 1400 2463 1220 1220 1926 400
CHL3000 3000 1600 1700 2395 1220 1100 2070 400
CHL4000 4000 1800 1900 2557 1220 1220 2220 400
CHL5000 5000 1900 2000 2637 1220 1220 2220 400
CHL6000 6000 2000 2100 2806 1380 1380 2206 400
CHL8000 8000 2200 2300 3226 1500 1500 2680 400
CHL10000 10000 2400 2500 3450 1580 1780 2780 400
