Purified Water Generation and Storage System for a Pharmaceutical Company in Belarus
- Project Country: Belarus
- Completion year: 2025
- Capacity: 2t/h
The client, a pharmaceutical company from Minsk, Belarus, produces solid dosage forms like tablets and capsules. Their newly-built production floor needed dedicated purified water system to replace existing equipment and deliver consistent water quality and easy control.
Solutions

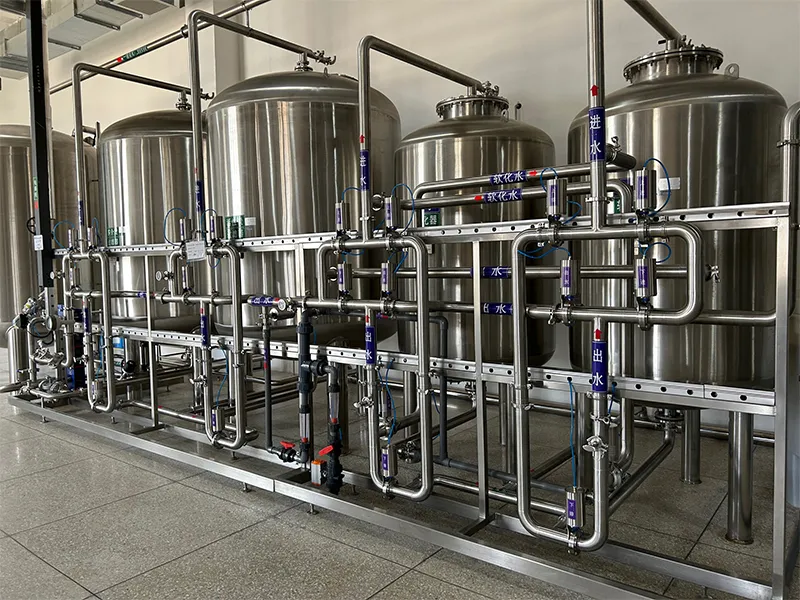

- Purified water generation: two-stage reverse osmosis (RO) + electrodeionization (EDI), 2 t/h

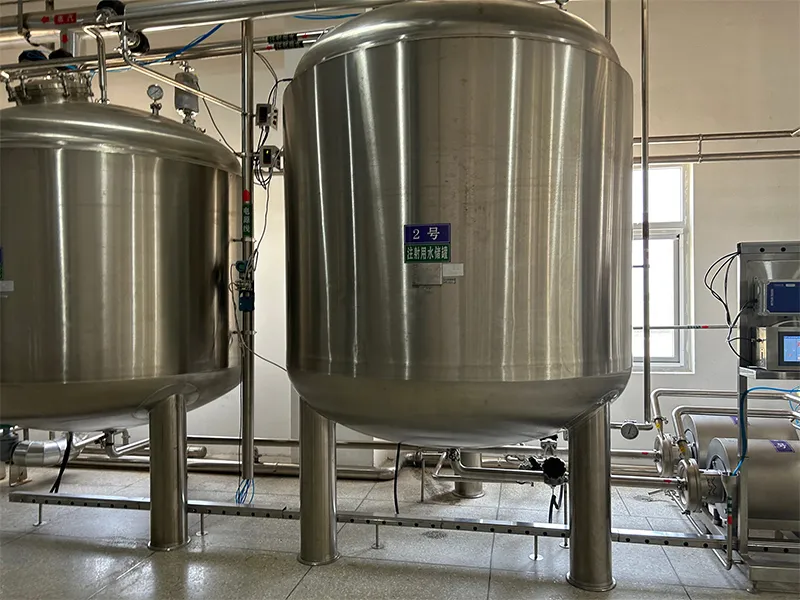

- Stainless steel storage tank, 3,000L working capacity
- Plant-wide recirculation distribution loop

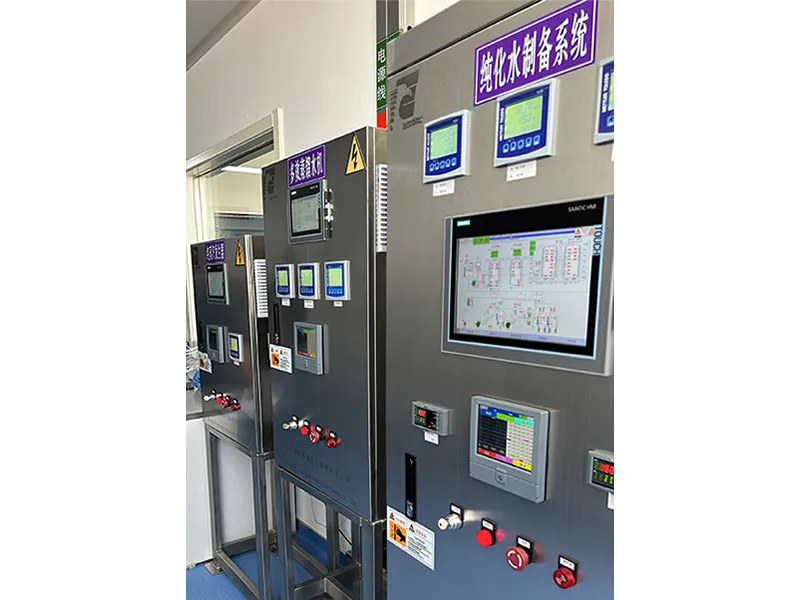

- PLC automatic control with real-time monitoring of parameters such as conductivity, flow rate, and temperature
Details
The purified water system supply water directly to the mixing unit with water volume automatically adjusted to the mixing process. The centralized control allows operators to manage the entire system from the mixing room.
Achievements
- The purified water system delivers consistent water quality and meets the requirements of solid dosage production.
- The purified water system operates smoothly under extreme winter conditions and consistently throughout the year without unplanned shutoff caused by low-temperature conditions.
- The purified water system successfully passed the client’s site acceptance test (SAT).
